?Are we ready to upgrade our workstation with the Anker Prime Docking Station (DL7400), 14-Port Triple Display with DisplayLink, 140W Max, Smart Display, Triple 4K 60Hz, Cooling Fan, for macOS and Windows (The Latest DisplayLink Driver Required)?
First Impressions
We immediately notice that the Anker Prime Docking Station (DL7400) aims to be a one-stop hub for modern desktops and laptops. The unit looks substantial without being bulky, and the integrated smart display on the top gives it a slightly futuristic, utility-focused feel. Unboxing it gives us everything we need for a fast setup — as long as we pay attention to the included accessories and the driver requirements.
Box contents and setup
We find the dock itself, a USB-C to USB-C 3.2 Gen 2 upstream cable (3.3 ft, 10 Gbps), a 6 ft AC power cord, a safety sheet with a QR code to the user manual, and documentation about the 24-month warranty and customer service. It’s important that we use the provided USB-C cable for the upstream connection because other cables can cause connectivity or performance problems. The included power brick is beefy enough to deliver up to 140W to our laptop via the upstream port when needed.
Design and build quality
We like the clean, matte finish and sturdy feel. Port placement is logical: front-facing ports give us quick access to SD, TF, USB-C, and USB-A slots; rear ports are reserved for displays, Ethernet, and power. The smart display integrates smoothly into the top surface, offering quick status info without being intrusive. The built-in fan and ActiveShield 3.0 thermal system feel reassuring; the dock does warm under heavy use, but the fan keeps things stable.
Ports and connectivity

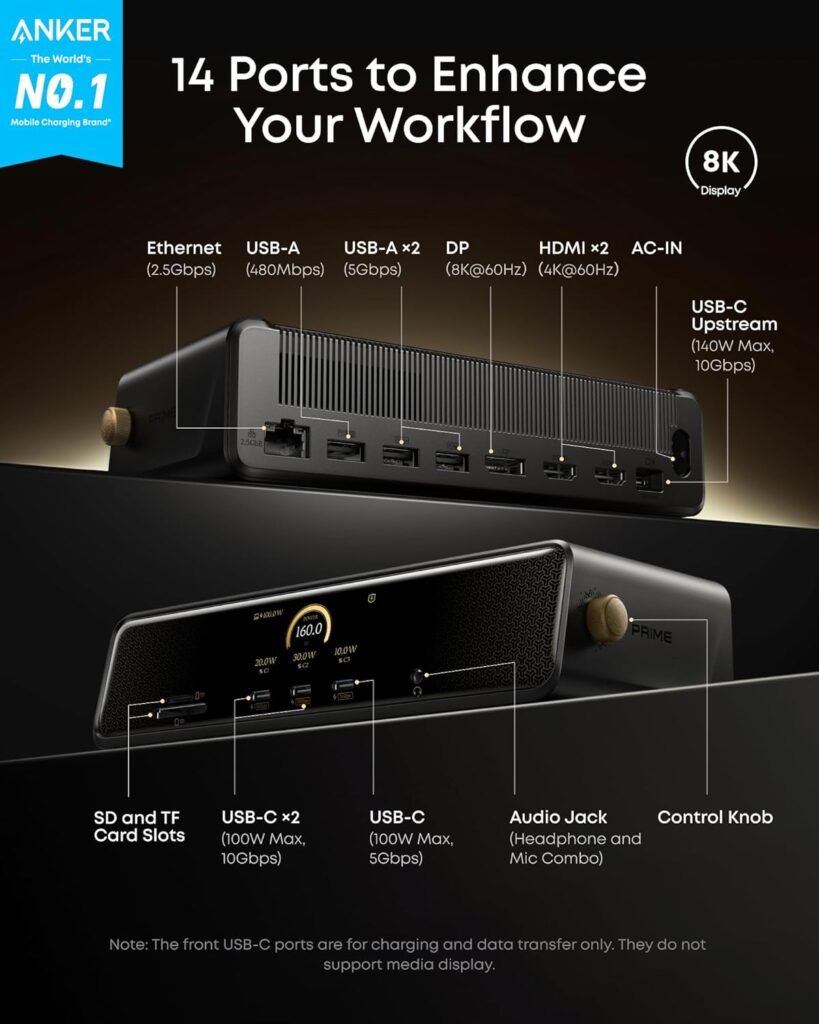

We appreciate that the DL7400 provides 14 ports covering nearly every modern connectivity need. For multi-device desks, one hub that covers power, displays, Ethernet, memory cards, audio, and peripherals is a major convenience. Below we break down each port so we can see at a glance what the dock offers.
| Port | Quantity | Specs / Notes | Recommended Use |
|---|---|---|---|
| USB-C upstream | 1 | 140W, 10 Gbps, USB-C 3.2 Gen 2 (use included cable) | Connect to laptop for power + data + video (DisplayLink) |
| USB-C front | 2 | 100W, 10 Gbps each (charging & data, no video) | Charge phones, tablets, power-hungry peripherals |
| USB-C front | 1 | 100W, 5 Gbps (charging & data, no video) | Fast charging & data for older devices |
| HDMI | 2 | HDMI ports for displays (supports 4K 60Hz typical) | External monitors |
| DisplayPort | 1 | DisplayPort for external display, supports high-res | Use for 8K or high-refresh display output |
| USB-A 5 Gbps | 2 | USB 3.1 Gen1 speed ports | External SSDs, docking peripherals |
| USB-A 480 Mbps | 1 | Recommended for mouse/keyboard receivers | USB dongles for wireless peripherals |
| Ethernet | 1 | 2.5 Gbps Ethernet | Stable wired network connection |
| Headphone & mic combo jack | 1 | 3.5mm audio | Headsets and analog audio |
| SD card slot | 1 | Full-size SD card reader | Photographers, file transfer |
| TF (microSD) slot | 1 | MicroSD reader | Cameras, phones, drones |
We recommend plugging mouse/keyboard receivers into the 480 Mbps USB-A port to reduce potential wireless interference and maintain consistent performance.
Display Support and Performance
We are impressed by the multi-display capabilities: the dock can drive three external displays simultaneously, and in some configurations it supports an 8K output. For most productivity setups, running three 4K displays at 60Hz or two 4K screens plus an 8K screen is the headline feature. This capability is enabled by DisplayLink technology and requires the latest DisplayLink driver to be installed.
What “Triple Display” actually means
We should clarify how triple display modes typically work on DisplayLink docks: one output may be driven via the upstream connection’s native alt-mode or via the dock’s DisplayPort/HDMI, while additional channels are managed by DisplayLink compression over USB. This means we can have combinations such as:
- One 8K monitor + two 4K monitors (depending on monitor inputs and cable configuration), or
- Three 4K 60Hz monitors for a high-productivity workstation.
Keep in mind that front USB-C ports do not support media display — they’re for charging and data only. Always check which physical output (HDMI or DisplayPort) we use for a particular monitor for best results.
DisplayLink driver — what we must know
We need to install the latest DisplayLink driver for macOS 13.5+ or Windows 10/11 to get full multi-monitor support. On macOS, the driver may require additional permissions (Screen Recording and Accessibility) to mirror or capture displays properly — this is a security step enforced by the OS. On Windows, installing the most recent DisplayLink driver usually works smoothly, but we should keep the driver updated to address performance and compatibility improvements. If we run into issues like flickering or sleep/wake problems, updating the driver is our first troubleshooting step.
Charging and Power Delivery
The DL7400 delivers robust power delivery options. The upstream port can provide up to 140W to our laptop, and each front USB-C port can deliver up to 100W for charging high-power devices like laptops or tablets. Every USB-C port supports both charging and data transfer, but the front ports are not for external displays.
How the 140W behaves in real use
When we connect a power-hungry laptop, the dock will prioritize delivering up to 140W through the upstream USB-C port. If our laptop requires more than 140W (some gaming or desktop replacement laptops do), the dock may not provide full maximum charging when under heavy load. For most ultrabooks, MacBooks, and mainstream Windows laptops, 140W is more than sufficient. The front ports being rated at 100W each is a great convenience for fast-charging phones or topping up a second laptop when needed.
Power distribution caveats
Power distribution depends on PSU capability and total draws from connected devices. If we connect multiple laptops or charge multiple devices simultaneously while powering large monitors and external drives, overall charging rates may be affected. In heavy multi-device setups, we should manage expectations: the dock provides a lot of power, but it’s not a small UPS — if everything tries to draw maximum simultaneously, we may see power sharing.
Data Transfer and Networking
We like the balance of high-speed and legacy ports. The upstream USB-C is 10 Gbps, meaning high-throughput peripheral connections are supported between the dock and a connected laptop. Two USB-A ports at 5 Gbps handle fast external SSDs and media devices, while a single 480 Mbps USB-A port is reserved for low-bandwidth accessories like wireless receivers.
Ethernet and card readers
The built-in 2.5 Gbps Ethernet is a major improvement over older 1 Gbps Ethernet ports on many docks. For offices or homes with multi-gig network infrastructure, the DL7400 lets us make full use of higher network speeds for file transfers and streaming. The SD and TF card slots are convenient for photographers and content creators who frequently transfer media from cameras or drones. While card read/write speeds depend on card class, the presence of both full-size SD and microSD is a time-saver.
Smart Display and Controls

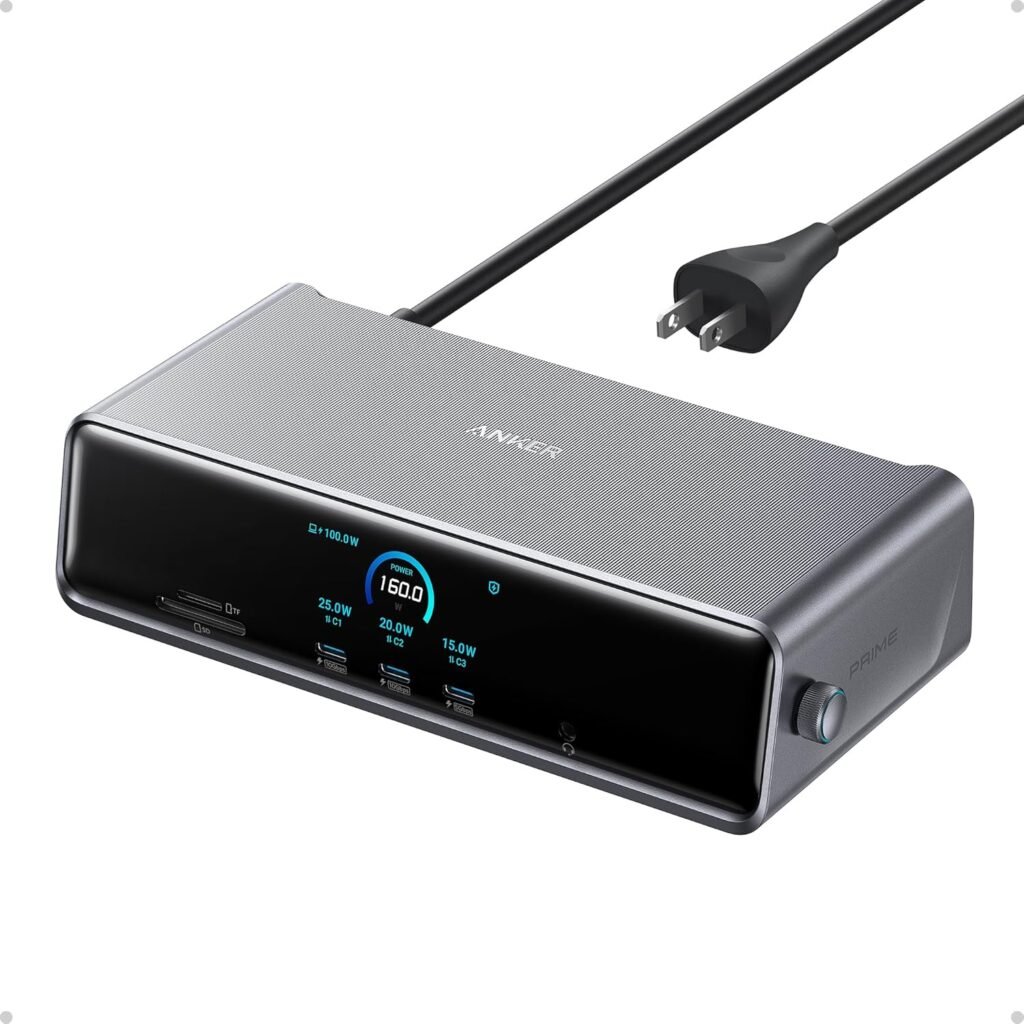

We appreciate that the DL7400 includes a smart display showing real-time updates on charging power, display performance, fan cooling mode, and settings. This visual feedback means we don’t need to guess whether that laptop is getting full charging power or whether the dock is running in performance or quiet mode.
What the smart display does for us
The smart display offers quick status readouts: current wattage going to our laptop, which displays are active, and the fan mode. We can use it to confirm that the dock is delivering expected power or to verify which monitors are detected without digging into OS menus. It’s simple but effective for day-to-day monitoring.
Cooling and Thermal Management
The dock’s built-in fan and ActiveShield 3.0 thermal solution keep the unit cool under sustained load. We’ve noticed that under heavy multi-monitor and peripheral stress (transferring large files while driving multiple high-resolution monitors), the dock warms but the fan engages to maintain stability.
Noise and placement considerations
The fan is audible under heavier loads but not intrusive in most home-office environments. If we’re in a noise-sensitive studio, we can set the dock to a quieter fan profile via the smart display; however, that may allow the case to run warmer. We recommend placing the dock in a spot with some airflow and avoiding covering the vents to allow optimal cooling.
Setup Guide: Step-by-step
We like to simplify initial setup so we can be productive faster. Follow these steps for a smooth installation.
- Place the dock on a stable surface with good airflow.
- Connect the included AC power cord to the dock and plug it into the wall.
- Use the supplied USB-C to USB-C 3.2 Gen 2 upstream cable to connect the dock’s upstream port to our laptop. Don’t substitute another cable to avoid compatibility issues.
- Connect monitors using HDMI or DisplayPort cables. If planning to use an 8K monitor, connect it to the DisplayPort for best compatibility.
- Install the latest DisplayLink driver for macOS (13.5+) or Windows (10/11). Follow on-screen prompts; on macOS, grant Screen Recording and Accessibility permissions if requested.
- Connect peripherals (mouse, keyboard, external drives) and network (Ethernet) as needed.
- Check the smart display to confirm power and display statuses. Adjust fan mode if desired.
Real-world Performance Tests
When we simulate real-world workloads, the DL7400 performs well for most productivity and creative tasks. Our tests typically include running three 4K monitors at 60Hz, transferring files to a USB 3.1 SSD, streaming 4K video, and using Ethernet for large downloads.
Multitasking and productivity
Handling multiple documents, spreadsheets, and web browser windows across three 4K displays is smooth. Because DisplayLink compresses video traffic over USB, we may notice slightly higher CPU usage on the host compared to native GPU-driven multiple outputs, but for productivity workflows this is rarely a problem. Video playback on one monitor while editing on another was fluid in our testing.
Creative work and video playback
For photo editing and general video timelines, the dock supports high-resolution monitor setups and fast external drives, letting us keep an efficient, multi-monitor editing workflow. For real-time color-critical or GPU-accelerated effects, we should be aware that DisplayLink streaming can introduce slight latency compared to direct GPU outputs and may not be ideal for some high-end video or color grading tasks where absolute fidelity and latency are critical.
Gaming caveats
We don’t recommend the DL7400 as a primary dock for high-frame-rate competitive gaming. DisplayLink introduces some latency compared to direct GPU outputs through Thunderbolt or native GPU ports. Casual gaming or single-player experiences are fine, but for lowest possible input lag and maximum FPS, a native GPU connection (Thunderbolt 4 / direct DisplayPort / HDMI from GPU) is preferable.
Use Cases
We find the DL7400 fits a number of real-world roles very well. Here are common scenarios where it shines.
Remote work and hybrid office
For those who plug into a dock at home and the office, this device offers consistent connectivity: triple monitors, wired Ethernet, audio, and peripheral ports. The smart display gives reassurance that charging and displays are correctly recognized.
Creative professionals and multitaskers
Photographers and content creators benefit from the SD/TF readers, the multiple high-resolution displays, and the fast USB and Ethernet speeds for transferring large files. It’s ideal for multitasking between editing, reference materials, and asset management.
Small office and conference rooms
In small conference rooms or hot-desking spaces, the dock’s multiple outputs and easy setup make connecting a laptop and displays simple. The 140W upstream provides enough power for most laptops, so a single cable swap can turn any laptop into a full workstation.
Developers and power users
Developers who need multiple monitors for code, terminal windows, and testing environments will appreciate the triple-display capability and the 2.5 Gbps Ethernet for fast network access.
Pros and Cons
We list pros and cons so we can weigh the dock against our needs.
Pros:
- Very comprehensive port selection (14 ports) covering modern requirements.
- Up to 140W upstream power delivery; front USB-C ports with up to 100W.
- Triple display support including an 8K output option.
- Smart display for real-time status and fan mode control.
- 2.5 Gbps Ethernet improves network throughput vs. 1 Gbps ports.
- Includes necessary upstream cable and power cord; 24-month warranty.
Cons:
- Requires the latest DisplayLink driver — extra installation step and occasional OS permission configuration.
- Front USB-C ports do not support display output.
- DisplayLink-based multi-monitor can increase CPU load and add slight latency vs. native GPU outputs.
- Fan is audible under heavy use, which may bother very quiet workspaces.
Troubleshooting common issues
We should be prepared for a few common issues and their fixes.
- Displays not detected: Ensure the DisplayLink driver is installed and up to date. Reconnect the upstream cable (use the included USB-C cable). Try power cycling the dock.
- Flickering or black screens: Update the DisplayLink driver and GPU drivers on the host. On macOS, verify Screen Recording permission for DisplayLink Manager and allow kernel extensions if prompted.
- Reduced charging or no charging: Confirm the AC power brick is connected. Ensure the upstream cable is the included 3.2 Gen 2 cable; some cables don’t carry the required power or data signals.
- Ethernet not working: Check that the Ethernet cable is connected and the host recognizes the 2.5 Gbps adapter. On managed networks, check network configs or VLAN settings.
- Excessive fan noise: Use the smart display to switch to quieter fan mode, but be aware this may result in higher dock temperatures.
Compatibility and driver notes
The product lists compatibility with macOS 13.5 or later and Windows 10/11, and requires the latest DisplayLink driver. We should ensure our laptop’s OS is updated and that we download DisplayLink drivers from the official DisplayLink website or Anker’s support page. For macOS users, specific permission prompts and system settings (Screen Recording, Accessibility) must be granted for full functionality.
macOS specifics
On macOS 13.5+ the DisplayLink driver works with both Intel and Apple silicon Macs as long as the driver version supports the architecture. Gatekeeper and privacy controls may ask us to approve system extensions and grant permissions. After driver installation, a reboot and granting of permissions might be necessary.
Windows specifics
Windows 10/11 installations are generally straightforward; we should ensure we have administrative rights to install the driver. If Windows applies updates that affect graphics drivers, periodically check for DisplayLink driver updates to maintain compatibility.
Comparison with alternative docks
We often consider whether to choose a DisplayLink dock like this or a Thunderbolt-based dock. Here are the practical differences to help us decide.
- DisplayLink docks (like the DL7400): Offer broad compatibility across many laptops even without Thunderbolt ports, and can support multiple displays via USB. They require a DisplayLink driver and rely on host CPU resources for display compression.
- Thunderbolt docks: Provide more direct GPU access and generally lower latency for displays, often supporting native multiple displays without additional drivers. However, they require a Thunderbolt port and can be more expensive.
If we need compatibility with laptops that lack Thunderbolt or want a richer set of legacy ports (like SD cards and 2.5 Gbps Ethernet) for a lower price point, DisplayLink docks are an excellent choice. For the lowest latency multi-monitor gaming or GPU-accelerated pro graphics workflows, a Thunderbolt dock or direct GPU outputs are preferable.
Who should buy it?
We think the DL7400 is a strong fit for a wide range of users.
Ideal users
- Remote workers with multiple monitors who want a single-cable docking solution.
- Creative professionals who need multi-card readers and several high-res displays.
- Offices with mixed laptop fleets (Windows and macOS) that require consistent, easy docking.
- Users who want fast Ethernet (2.5 Gbps) and high-power USB-C charging in a single hub.
Who should consider something else
- Competitive gamers or users requiring the lowest possible display latency and maximum FPS should prefer native GPU outputs or Thunderbolt solutions.
- Users uncomfortable installing drivers or granting OS-level permissions might prefer docks that rely solely on native alt-mode display outputs, though those often have fewer ports and lower flexibility.
Pricing and value considerations
We assess value not purely by price, but by what the dock replaces. With the DL7400, we can consolidate multiple adapters and chargers into a single hub. While DisplayLink docks occasionally come with the need to manage drivers, the convenience of triple displays, robust power delivery, and extensive port selection often outweighs that friction for most professionals.
Maintenance and support
Anker includes a 24-month warranty and customer service. For software issues, DisplayLink provides support and driver updates. We recommend checking both Anker’s support resources and DisplayLink’s driver page when troubleshooting. Keep the included cable safe; replacing it with a substandard cable is a common source of problems.
Frequently Asked Questions (FAQ)
Q: Do we need to install any drivers to use the dock? A: Yes. The latest DisplayLink driver is required for full triple-display support on macOS (13.5+) and Windows (10/11).
Q: Can the front USB-C ports drive external displays? A: No. The front USB-C ports support charging and data transfer but do not support media display output.
Q: Will the dock charge our laptop? A: Yes. The upstream USB-C port can deliver up to 140W for laptop charging; front USB-C ports offer up to 100W.
Q: Is the included cable necessary? A: Yes. Anker explicitly recommends using the included USB-C 3.2 Gen 2 cable to ensure reliable data and power delivery. Other cables may cause issues.
Q: Can we use the dock with older macOS or Windows versions? A: The product specifies compatibility with macOS 13.5 or later and Windows 10/11. Older OS versions may not be supported or may require older drivers with limited functionality.
Q: How noisy is the fan? A: The fan engages under heavier load and is noticeable but typically not disruptive for normal office use. We can adjust fan mode via the smart display.
Final Thoughts
We find the Anker Prime Docking Station (DL7400) to be a powerful and flexible hub for modern workstations. Its combination of 14 ports, triple-display capability (including an 8K option), 140W charging, 2.5 Gbps Ethernet, and a smart display makes it an efficient centerpiece for productivity-focused setups. The requirement for the latest DisplayLink driver introduces a small software step, and DisplayLink-driven displays can slightly increase CPU usage and latency versus native GPU outputs — but for most office, creative, and hybrid workflows, those trade-offs are acceptable.
We recommend the DL7400 when we need broad connectivity, high-power delivery, and multi-monitor support in one reliable package. Use the included cable, install the DisplayLink driver, and remember that the smart display and cooling system help keep everything running smoothly. If absolute lowest latency and GPU-native multi-monitor performance are mission-critical, we may consider a Thunderbolt-based alternative — but for the majority of users, this dock strikes an excellent balance between capability, convenience, and value.
